Threaded Pipe Fitting Manufacturers,Carbon, Alloy, Stainless Steel Forged Threaded Pipe Fittings Manufacturers in India
Stainless Steel Forged Threaded Pipe Fittings Fittings, Carbon Steel Forged Threaded Fittings, Stainless Steel Forged Threaded Fittings,High Quality Threaded Fittings – Asme B16.11 Suppliers in India
SS Threaded Fittings Manufacturers,Threaded Elbow, Threaded Tee, Threaded Cross, Threaded Union, Threaded Coupling Manufacturers & Suppliers in India

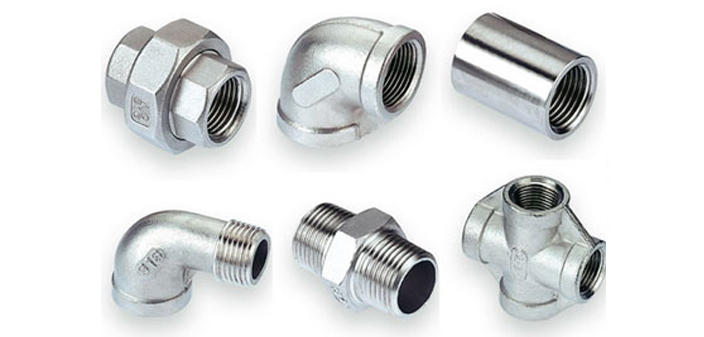

High Pressure Threaded Pipe Fittings
| Pressure Class: | 2000LBS, 3000LBS, 6000LBS |
|---|---|
| Products: | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple |
| Dimension Specifications: | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size: | 1/8”~4” (DN6~DN100) |
Forged Pipe Fittings Manufacturing Standards
- ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
- ASME B16.9 – Factory-Made Wrought Buttwelding Fittings
- ASME B16.11 – Forged Fittings, Socket – Welding and Threaded
- MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
- MSS SP-95 – Swage(d) Nipples and Bull Plugs
- BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
We Have Ready Stock Of All Different Types Of Forged Threaded Pipe Fittings :
Threaded 45 Deg Elbow
Threaded 90 Deg Elbow
Threaded Bushing
Threaded Cap
Threaded Cross
Threaded Full coupling
Threaded Half Coupling
Threaded Hex Bushing
Threaded Hex Nipple
Threaded plug
Threaded Tee
Threaded Unequal Cross
Threaded Unequal Tee
Threaded Union BS3799
Threaded Street Elbows
Threaded Swage Nipple
Threaded Welding Boss
Threaded Union
Threaded 180 Degree Elbow
Threaded Fittings
Forged Threaded Stainless Steel Fittings
Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
- The material for forged stainless steel fittings conforms to ASME A182
- The dimensions for forged stainless steel fittings conform to ASME B16.11
- NPT Threads conform to ASME B1.20.1
Forged Threaded Carbon Steel Fittings:
Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
- The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
- NPT Threads conform to ASME B1.20.1
