Pipe End Caps Suppliers,Pipe End Caps Manufacturers in India,Pipe End Caps – Round, Oval Manufacturers in India
ANSI B16.28 End Caps, ASME B16.25 Pipe End Caps Suppliers,ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 Suppliers in India
MSS SP-43 Butt Weld Pipe End Caps, Low Tempreture Pipe Caps & End Caps,Carbon, Alloy, Stainless Steel Pipe Caps Manufacturers & Suppliers in India

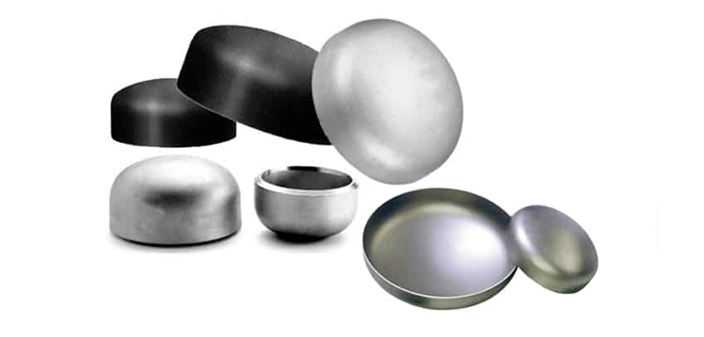

Pipe End Cap Production Range
| Outside Diameter: | 1/2″ – 48″ |
|---|---|
| Type: | Pipe End Cap |
| Wall Thickness: | 2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards
- ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
- DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
- EN: EN10253-1, EN10253-2
| ASTM A403 | ASME SA403 - Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
We Have Ready Stock Of All Different Types Of Pipe End Cap
Stainless Steels Pipe End Caps
Carbon Steel Pipe End Caps
Alloy Steel Pipe End Caps
Duplex Steel Pipe End Caps
Pipe Cap Material Grades
| Stainless Steel Pipe Cap: | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
|---|---|
| Carbon Steel Pipe Cap: | ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Pipe Cap: | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Pipe Cap: | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Steel Pipe Cap: | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy Pipe Cap: | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) |
